(ID:24887) Panasonic 50,000-Lumen PTRQ50K 4K Native Laser Projector


https://www.youtube.com/watch?v=FrGRcSAauAw


ความเห็น

[1]


(ID:204343)



(ID:204344)

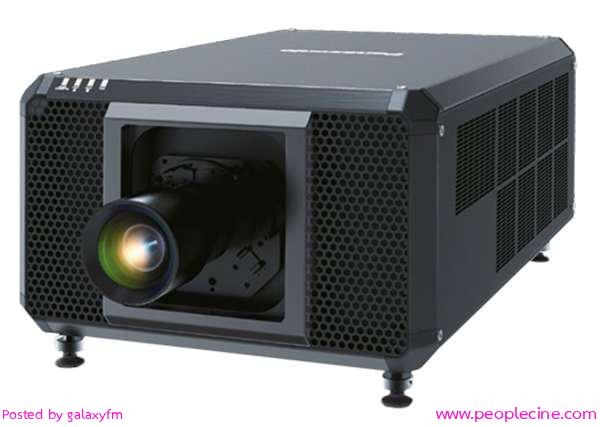

PT-RQ50K
Light Output50,000 lm*2
Resolution4K (4096 x 2160)

Features

Awesomely Bright Native 4K Images for Absolute Immersion

Achieves Native 4K Resolution at 50,000 lumens*2 with new red laser enhancing blue laser technology in an optimized dual SOLID SHINE laser-phosphor drive system for vibrant, pure, and emotionally powerful color reproduction

Swift Setup with Single-Body Design

Produces 50,000 lm*2 from the same footprint as Panasonic’s 30,000-lm-class 3-Chip DLP™ laser models.
Compact all-in-one body brings significant workflow advantages with simplified transport and installation, and swift setup and adjustment

Reliable Operation for Mission-Critical Applications

Dualized design features dual solid-state laser-phosphor drives, dual power supplies, redundancy circuits for laser modules, and backup video inputs. Hermetically sealed optics and filter-less design, meanwhile, contribute to 20,000 hours*3 maintenance-free projection in severe conditions

*1 For laser-phosphor projectors in the single-body 50,000-lumens-class or higher, as of February 2019.

*2 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.

*3 At this time, brightness will have decreased to approximately 50 % of its original level (Dynamic Contrast Mode [3]). Panasonic recommends cleaning or checkup at point of purchase after about 20,000 hours. Light-source lifetime may be reduced depending on environmental conditions. Replacement of parts other than the light source may be required in a shorter period.

Specifications (Tentative)

 PT-RQ50K
Projector type3-Chip DLP™ projector
DLP™ chip
Panel size35.1 mm (1.38 in) diagonal (17:9 aspect ratio)
Display methodDLP™ chip x 3, DLP™ projection system
Number of pixels8,847,360 (4096 x 2160) pixels x 3, total of 26,542,080 pixels
Light sourceLaser diodes (Blue LD, Red LD)
Light output*150,000 lm
Time until light output declines to 50 %*220,000 hours (NORMAL) / 24,000 hours (ECO)
Resolution4K (DCI) (4096 x 2160 pixels)
Contrast*120,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)
Screen size (diagonal)2.54–25.4 m (100–1,000 in) with new optional lens for PT-RQ50K, 17:9 aspect ratio (depending on lens)
Center-to-corner uniformity*1TBD
LensNew optional lenses for PT-RQ50K (no lens included with this model)
Lens shift
Vertical
(from center of screen)
TBD
Horizontal
(from center of screen)
TBD
Keystone correction rangeTBD
Keystone correction range with optional ET-UK20 Upgrade KitTBD
InstallationHorizontal/vertical, free 360-degree installation
Terminals
MULTI PROJECTOR SYNC INBNC x 1
MULTI PROJECTOR SYNC OUTBNC x 1
SERIAL IND-sub 9-pin (female) x 1 for external control (RS-232C compliant)
SERIAL OUTD-sub 9-pin (male) x 1 for link control
REMOTE 1 INM3 x 1 for wired remote control
REMOTE 1 OUTM3 x 1 for link control
REMOTE 2 IND-sub 9-pin (female) x 1 for external control (parallel)
DIGITAL LINKRJ-45 x 1 for network, DIGITAL LINK connection (HDBaseT™ compliant), 100Base-TX, compatible with Art-Net, PJLink™ (Class 2), Deep Color, HDCP 2.2
LANRJ-45 x 1 for network, 100Base-TX, compatible with Art-Net, PJLink™ (Class 2)
DC OUTUSB Type A x 2 (for power supply, DC 5 V, total of 2 A)
Expansion Slot 1Interface Board for 12G-SDI (ET-MDN12G10) supplied
Expansion Slot 2Optional interface boards, SLOT NX compatible
Power supplyAC 200–240 V, 35.8 A, 50/60 Hz; AC 100–120 V, 9.8 A, 50/60 Hz (Brightness restricted with voltage lower than 200 V)
Power consumptionTBD
Cabinet materialsMetal (Partly Plastic Mold)
Operation noise*1TBD
Dimensions (W x H x D)TBD
Weight*3TBD
Operating environmentOperating temperature: 0–45 °C (32–113 °F)*4, operating humidity: 10–80 % (no condensation)
Applicable softwareLogo Transfer Software, Multi Monitoring & Control Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™

*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.

*2 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [3], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output declines to 50 % varies depending on environment.

*3 Average value. May differ depending on the actual unit.

*4 When using the projector at an altitude lower than 2,700 m (8,858 ft) above sea level, and the operating environment temperature becomes 30 °C (86 °F) or higher, the light output may be reduced to protect the projector. When using the projector at an altitude between 2,700 m (8,858 ft) and 4,200 m (13,780 ft), and the operating environment temperature becomes 25 °C (77 °F) or higher, the light output may be reduced to protect the projector.




(ID:204346)
https://www.youtube.com/watch?v=0_LUdjf9FVU




(ID:204360)
https://www.youtube.com/watch?v=S4xuy_OvPYk
